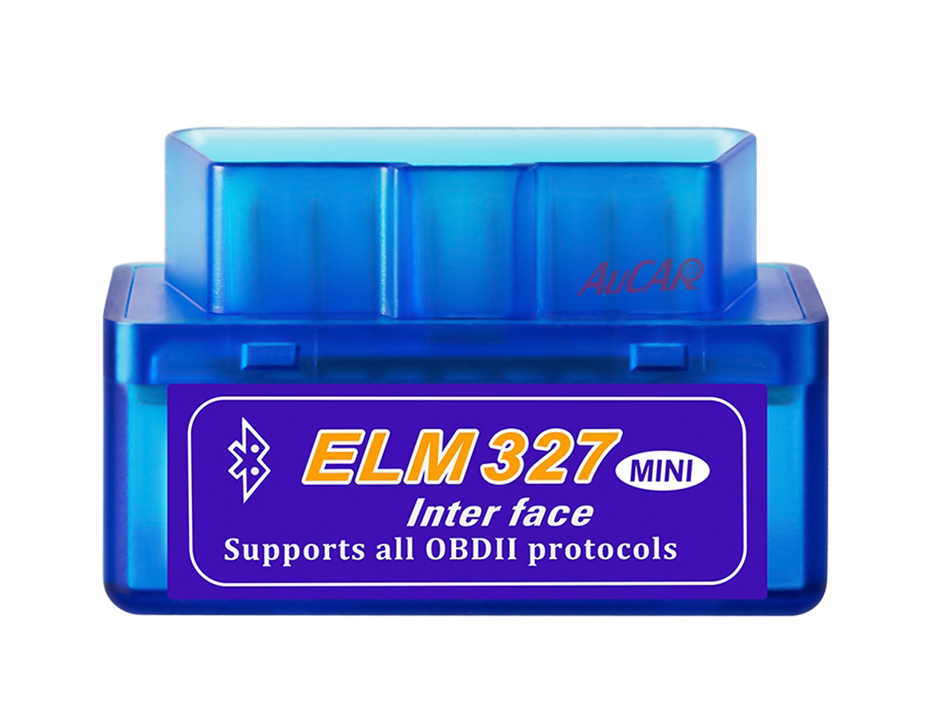

AuCAR Mini Elm327 Bluetooth OBD2 OBD II Adapter ELM 327 Auto Code Scanner for IOS iPhone ELM327 V1.5

Brand Name
AuCAR
Origin Place
Guangdong, China
Model Number
AMUN-OBD2
Certifications
CE, RoHS, FCC
Delivery Time
Within 1~7 workdays after payment
Payment Terms
TT , Western Union, Paypal
Wechat

  • Descriptions
  • Specifics


4 Key Features.jpg

ELM327 V2.1 Features:

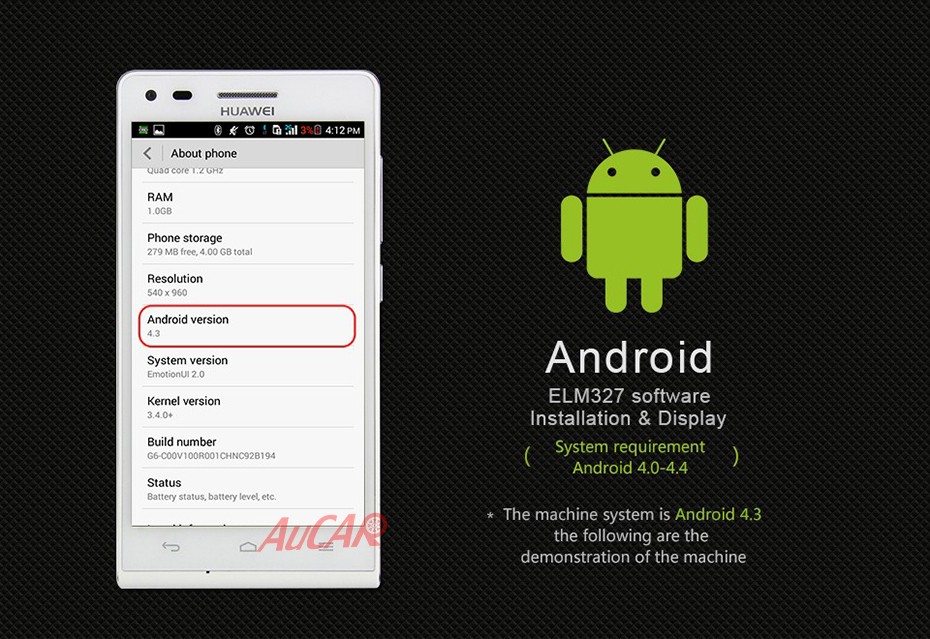

1. Works on Android/ Symbian/Windows smart-phone. Please use Android system V4.1 to V4.3 version. No Support IOS

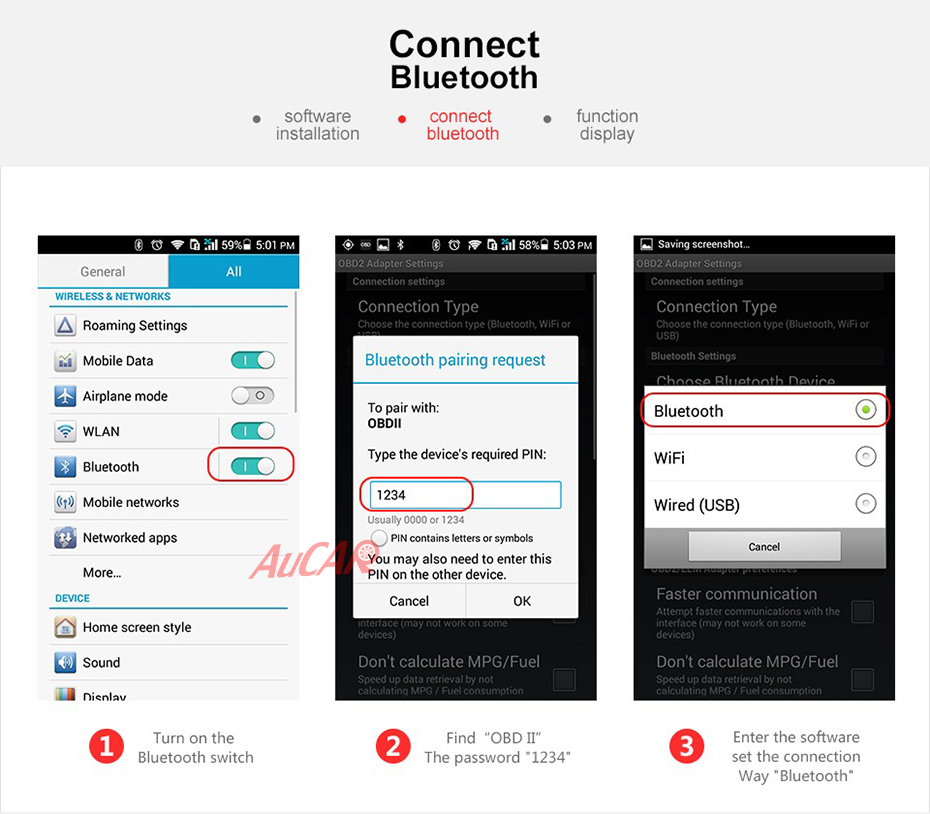

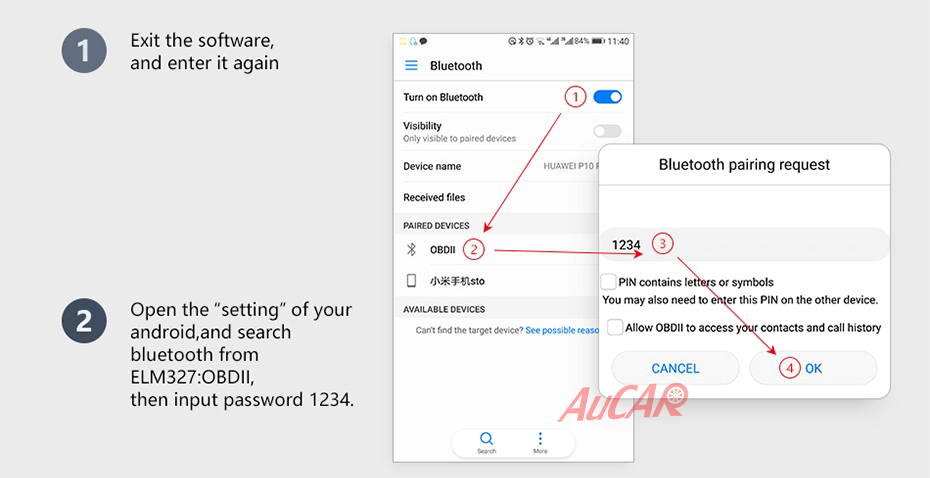

2. Bluetooth Passwords: 1234

3. Latest Version SW: V2.1.HW: V2.1.

4. This one CAN'T support for Diesel or Trucks and it can't be used on IOS system.

5. Latest sw version supports most of OBDII protocols.

6. If you want to connect an OBD II device into Android car radio, please use the WiFi OBD II, link as below:

    - Linkage: http://www.amph-industry.cn/aucar/products/14865218.html


ELM327 2.1 OBD2 Bluetooth Support 7 Kinds of OBDII protocols as follows:

Vehicle Coverage: Works on all OBD2 Vehicles.

1.ISO9141-2(5 baud init,10.4Kbaud)

2.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

3.ISO14230-4 KWP(fast init,10.4 Kbaud)

4.ISO15765-4 CAN(11bit ID,500 Kbaud)

5.ISO15765-4 CAN(29bit ID,500 Kbaud)

6.ISO15765-4 CAN(11bit ID,250 Kbaud)

7.ISO15765-4 CAN(29bit ID,250 Kbaud)


Top 5 Reasons To Get Super MINI ELM327 Bluetooth V1.5:

1. Software Version: V2.1

2. Hardware Version: V1.5

3. Works with all OBD-II compliant vehicles

4. Wireless (Bluetooth)

5. Software included for Palm, PDA, Windows PC, Windows Smartphone

6. 1PCB PIC18F25K80 Chip is 4MHZ. Bluetooth Module is 24MHZ.

    2PCB PIC18F25K80 Chip is 4MHZ. Bluetooth Module is 16MHZ.

7. It supports commands ATAL and ATPPS.


ELM327 Bluetooth V1.5 Support All 9 Kinds of OBDII protocols as follows:

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)



ELM327 V1.5 Specifications:

Operating voltage: 12V, internal protection from short circuits/overvoltages

Nominal idle current: 45mA

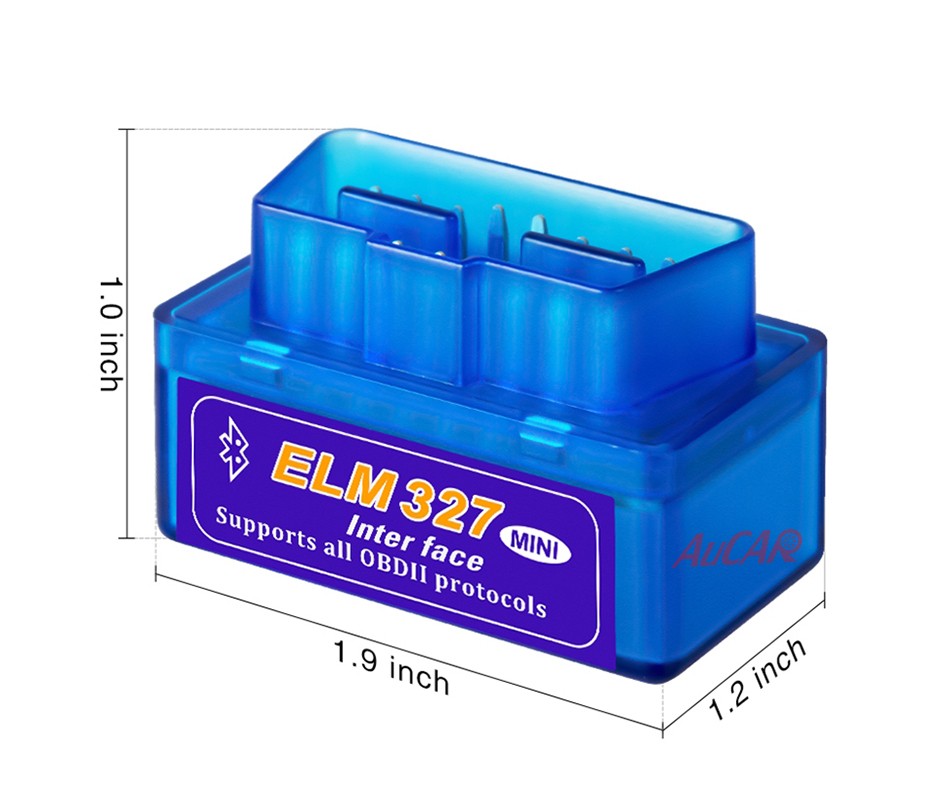

Item Size: 3.2 * 4.7 * 2.3cm

Item Weight: 22g

Package Weight: 45g


ELM327 Functions:

 1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning  (over 3000 generic code definitions in the database).

 2.Clear trouble codes and turn off the MIL ("Check Engine" light)

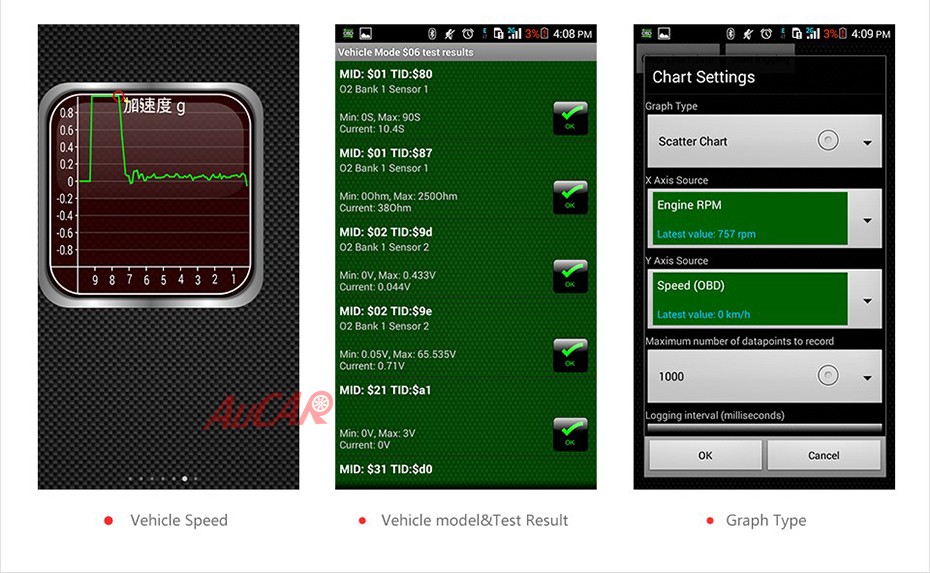

 3.Display current sensor data

 4.Engine RPM

 5.Calculated Load Value

 6.Coolant Temperature

 7.Fuel System Status

 8.Vehicle Speed

 9.Short Term Fuel Trim

 10.Long Term Fuel Trim

 11.Intake Manifold Pressure

 12.Timing Advance

 13. Intake Air Temperature

 14.Air Flow Rate

 15.Absolute Throttle Position

 16.Oxygen sensor voltages/associated short term fuel trims

 17. Fuel System status

 18.Fuel Pressure



 Package Including:

 1pc x ELM327 Bluetooth obd scan tool interface

 1pc x SW driver

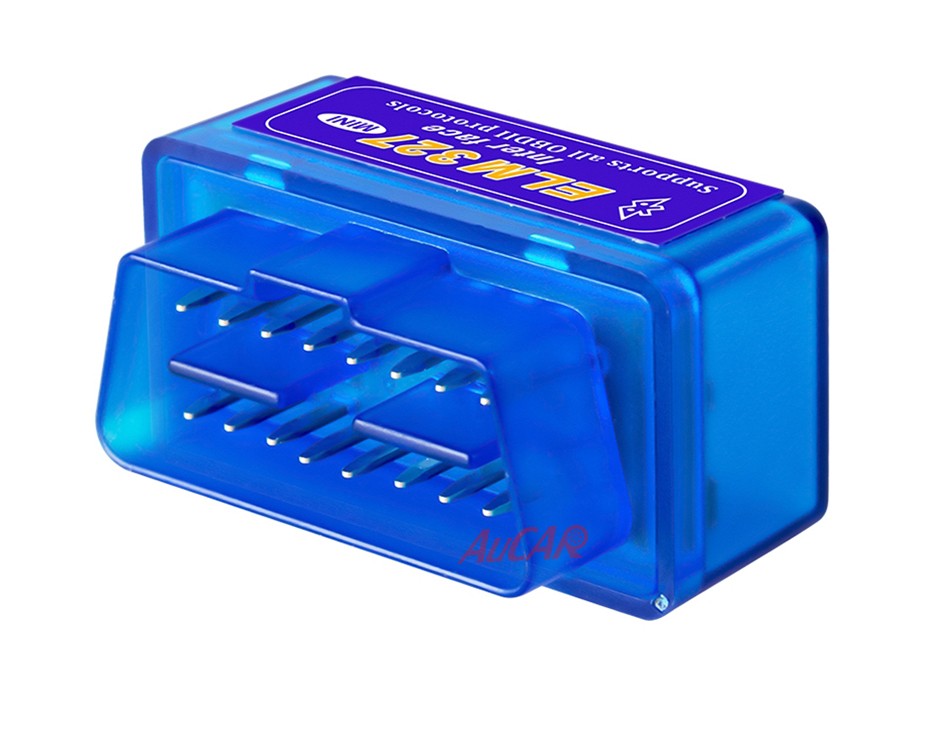

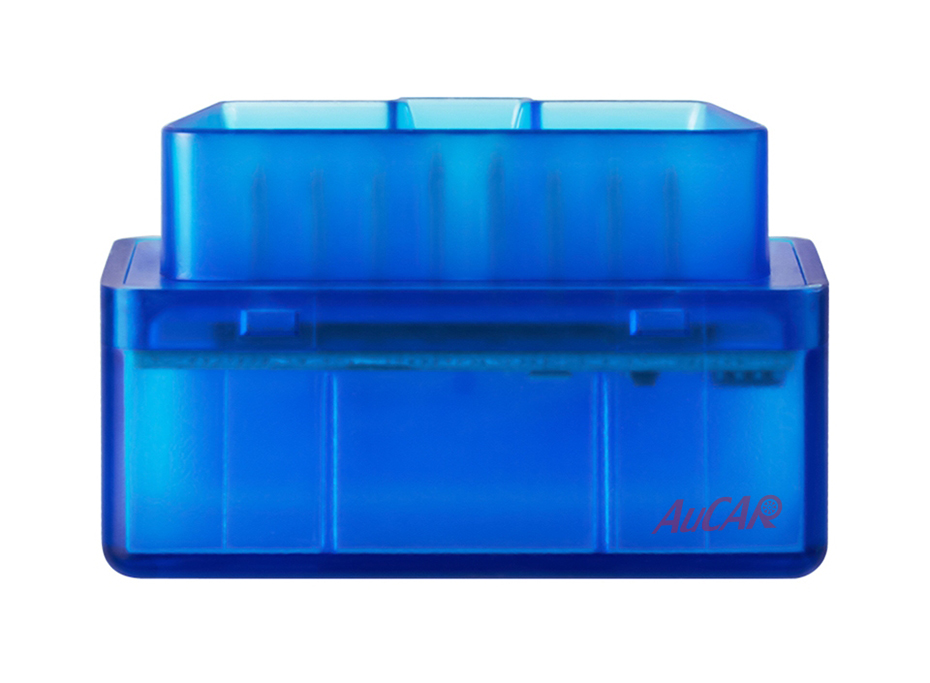

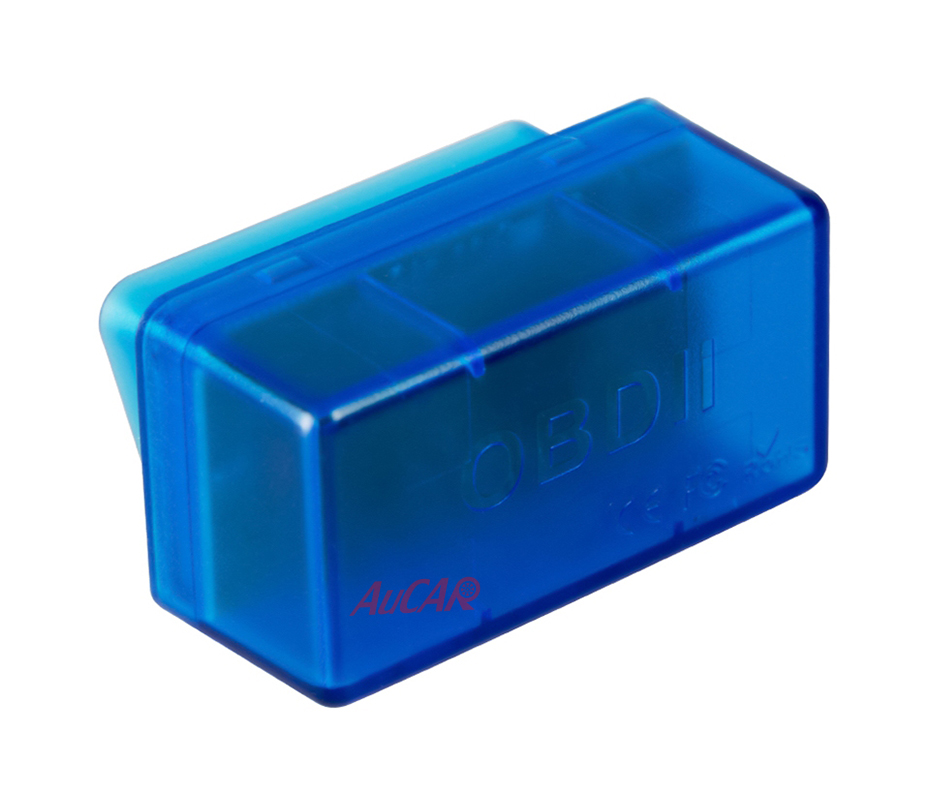

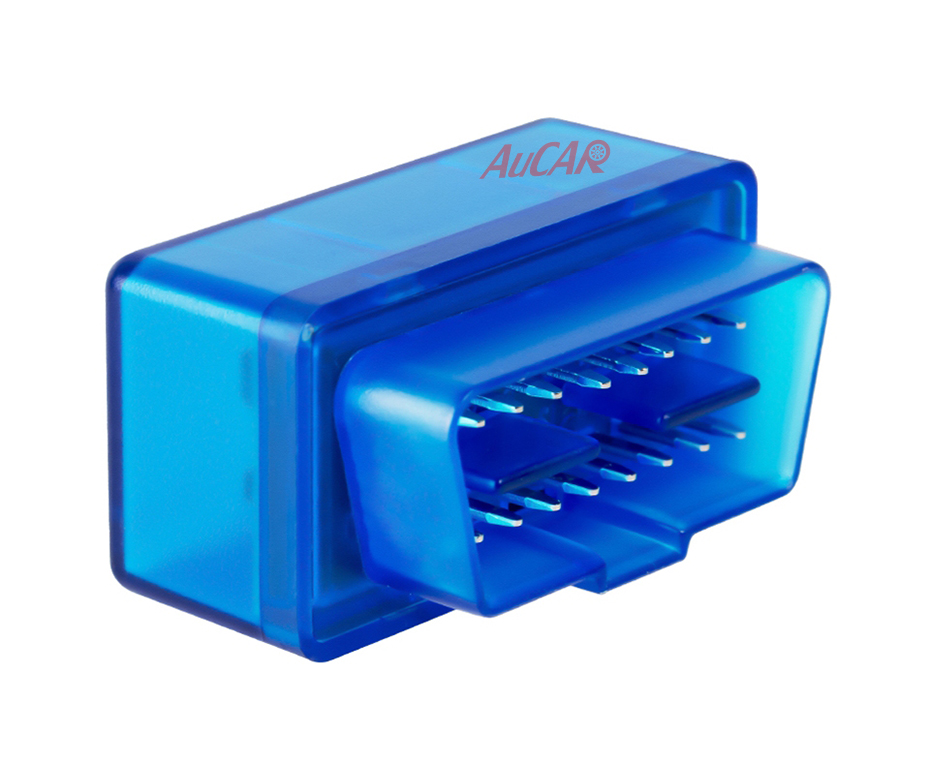

6 Product Pictures.jpg

Important Notes.jpg

Shipping & Custom Tax

   1. We will handle your case within one business day after payment confirmation.

   2. Your order will be shipped out within 7-10 working days under normal circumstance.

   3. We ONLY send the product to the address confirmed by customer.

   4. No service to PO BOX, FPO, APO address.

   5. Once we send out:

       a. You could NOT change the address.

       b. You could NOT reroute.

       c. You could NOT hold for pick up.

    6. The listed price is only for the product, we are NOT liable for ANY import tax, customs fee, or custom storage fee. Buyer cannot cancel the order or request for refund due to the above reasons.


Warranty & Return Policy

   1. We provide one year warranty for all our products from the date of purchase, excludeing artifical damage, inappropriately installation or operation.

   2. The buyer is responsible for the returned shipping fee.

   3. All the returned unit must be in its original package. Please contact our sales team first before the return.


Customer Service

   1. Our customer service team will serve you from Monday to Friday.

   2. Should you have any questions, please feel free to send email to us via AucarService@amph-industry.cn

   3. We will answer your email within 24 working hours. If not, please kindly remind us.

   4. We are closed on public holidays.


7 FAQ.jpg

Q: How to make sure this unit fit my car?

A: Before you place an order, please send us a picture of your car dashboard and let us know the model and manufacturing year of your car, we will confirm for you.


Q: Will it come with GPS map installed?

A: You can download the map in Google play store by yourselves. Alternatively if you want us to install one for you, please leave us message when you order it.


Q: Is it possible to listen music or radio while using navigation?

A: Yes


Q: Does it come with TV function? Do I need to cut cable for connection?

A1: TV function is optional. You need to buy an external digital TV-Box from us, if you want to watch mobile digital TV in your area.

A2: This unit is plug and play, no need to cut or joint cables.


Q: Can I install the unit by myself?

A: The unit is plug and play, easy to install, but it requires some professional experience and tools. To avoid damages to the head unit or your dashboard, we suggest that the installation to be done by a professional technician.


Q: Can you do drop shipping?

A: Yes, we can support it. Please make sure the contact informaiton of consignee is correct when placing orders.


Q: Could you please test the product before packing?

A: Yes, of course. We ALWAYS test our product before shipping.


IF YOU HAVE MORE QUESITONS, PLEASE FEEL FREE TO CONTACT US!
